CR Laurence CRL P7924 Screen Table Jig Set

Original price was: $185.55.Current price is: $99.99.

SKU: P7924 Category: Window and Door Screening Supplies and Tools Tag: CR Laurence

There are quality problems, free return and exchange
Quality You Can Count On
Your questions, our prompt answers.
Protecting Your Payment Information

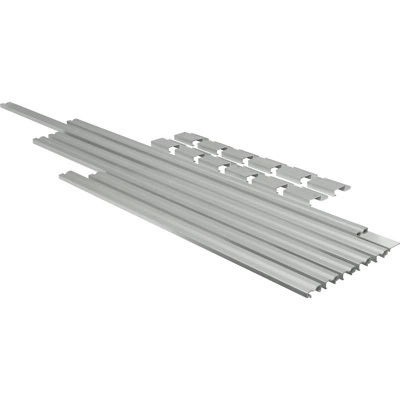

The CRL Screen Table Jig Set makes fabricating window screens easier because it keeps the screen frame square and in proper alignment while you roll in the screen wire and retainer spline. It can be used on any shop table, and sets up quickly and easily. It has six extruded aluminum Jig Bars. Three Bars are floaters, and three are stationary. One is 42″ (1.06 m) for the short end of the table, and two are to be mounted end to end with a steel splice (included) for the 84″ (2.13 m) long side of the table. The CRL Screen Table Jig Set Kit also includes 12 each 3/4″ (19 mm) Jig Clips. Once the two stationary bars are mounted to the table, slip three clips onto each side. Pick the appropriate floater bar lengths (depending on screen size), and slip three clips onto each. Lay the frame onto the table so that the frame engages all 12 clips. Arrange the clips on each bar so that one clip is at the far ends of the screen frame, and one clip is in the middle of the frame. This center clip does the work by holding the frame as straight as the jig bar and preventing bow in. Extra jig clips are available for either 3/4″ (19 mm) or 1″ (25 mm) frame. DS 06/28/2016

From Manufacturer

The CRL Screen Table Jig Set makes fabricating window screens easier because it keeps the screen frame square and prevents “Hour Glass” bow-in. The Set has six extruded aluminum Jig Bars. Three Bars are floaters, and three are stationary. One is 42″ (1.06 m) for the short end of the table, and two are to be mounted end to end with a steel splice (included) for the 84″ (2.13 m) long side of the table. This allows the Jig Set to ship standard U.P.S.
The Kit also includes 12 each 3/4″ (19 mm) Jig Clips. Once the two stationary bars are mounted to the table, slip three clips onto each side. Pick the appropriate floater bar lengths (depending on screen size), and slip three clips onto each. Lay the frame onto the table so that the frame engages all 12 clips. Arrange the clips on each bar so that one clip is at the far ends of the screen frame, and one clip is in the middle of the frame. This center clip does the work by holding the frame as straight as the jig bar and preventing bow in. Extra jig clips are available for either 3/4″ (19 mm) or 1″ (25 mm) frame.
