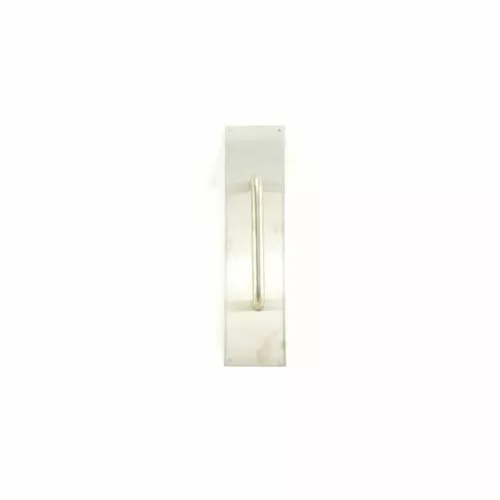

Trimco 10173B630 1017-3B Pull Plate, Satin Stainless Steel

OA (Overall Size) 4 x 16 Projection 2-3/4 Grip 1194-2 Clearance 2 CTC 8. Satin Stainless Steel finish.
1017Heavy Duty Pull Plate

The Trimco’s Heavy Duty Pull Plates combine the 1001 Series Push Plate with a large offering of different grip styles. These ADA compliant pull plates are available in 3″ x 12″, 3-1/2″ x 15″ and 4″x16″ standard plate sizes and are mated with your choice of cast traditional or tapered pulls, half-round, 3/4 round, full round or bent bar type pulls. Custom plate sizes and finishes are also available.

Applications:

• Retail & Strip Malls

• Commercial & Industrial Buildings

• Multifamily & Mixed-Use

• Government & Military Facilities

• Public Buildings & Facilities

Features:

• Combines 1001 Series Plate with a wide range of grips.

• Plates are made of heavy duty .050″ stainless steel, brass, or bronze and are heavy beveled on all four sides.

• Standard plate sizes include 3″ x 12″, 3-1/2″ x 15″ and
  4″ x 16″. Custom sizes and finishes also available.

• Available in a wide range of architectural materials and finishes including anti-microbial copper alloys.

Specifications: Standards:

• BHMA J405
• ANSI A117.1
• Accessibility Code (ADA Compliant)

Series:

• 1010 – Cast Traditional Pull
• 1012 – Cast Tapered Pull
• 1013 – 3/4″ Round Pull
• 1014 – Half-Round Pull
• 1015 – Bar Pull
• 1017 – 3/4″ Dia. Round Pull
• 1018 – 1″ Dia. Round Pull

Material Options:

• BR – Brass
• BZ – Bronze
• PL – Chrome Plated Brass or Bronze Castings
• AI – Aluminum
• SS – Stainless Steel
• CU+ – Copper Alloy

Warranty:

• Limited Lifetime Warranty

Finishes:

• 605 – Polished Brass
• 606 – Satin Brass, DulL
• 612 – Satin Bronze
• 613 – Oil Rubbed Bronze
• 625 – Polished Chrome
• 626 – Satin Chrome
• 628 – Satin Aluminum, Clear Anodized
• 629 – Polished Stainless Steel
• 630 – Satin Stainless Steel
• 706 – Sterose Copper (rose)
• 710 – Steralloy Copper (silver)
• SPEC – Special Options Available
